part |
project |
parameter |
|
parameter |
The whole machine adapts to the working environment |
Altitude：≤2000M |
|
Ambient temperature +50° -20Relative humidity：≤95% |
||
|
Locomotive dimensions |
8210×1500×2400(With traction seat） |
|
|
gauge |
900MM |
|
|
Adhesive weight |
45T |
|
|
The weight of the battery and the box |
13.8 |
|
|
Adhesion coefficient |
0.26 |
|
|
transfer method |
Direct-AC frequency conversion-mechanical transmission |
|
|
power |
120KW×2 |
|
|
Starting traction |
117KN |
|
|
Continuous traction |
102KN |
|
|
Maximum speed |
20KM/H |
|
|
Continuous speed |
8KM/H |
|
|
Locomotive traction weight |
199T(3.0%) |
|
|
Steering mode minimum curve radius |
25M |
|
|
Damping method |
V-spring |
|
|
Heavy load climb |
30‰ |
|
|
Locomotive control |
Controller |
|
|
Braking method |
Air brake + electric brake + hand brake + anti-roll brake |
|
|
Brake override |
8 |
|
|
Brake form |
Double side brake |
|
|
Braking distance |
≤20M（Running speed6km/h）t |
|
|
Emergency braking method |
Compound brake, anti-roll brake |
|
|
Traction pin center line from rail height |
430MM |
|
|
Wheel diameter |
840MM |
|
|
Axle weight |
22.5T |
|
|
Battery life |
≥750Times |
|
|
One charge mileage |
≥30KM |

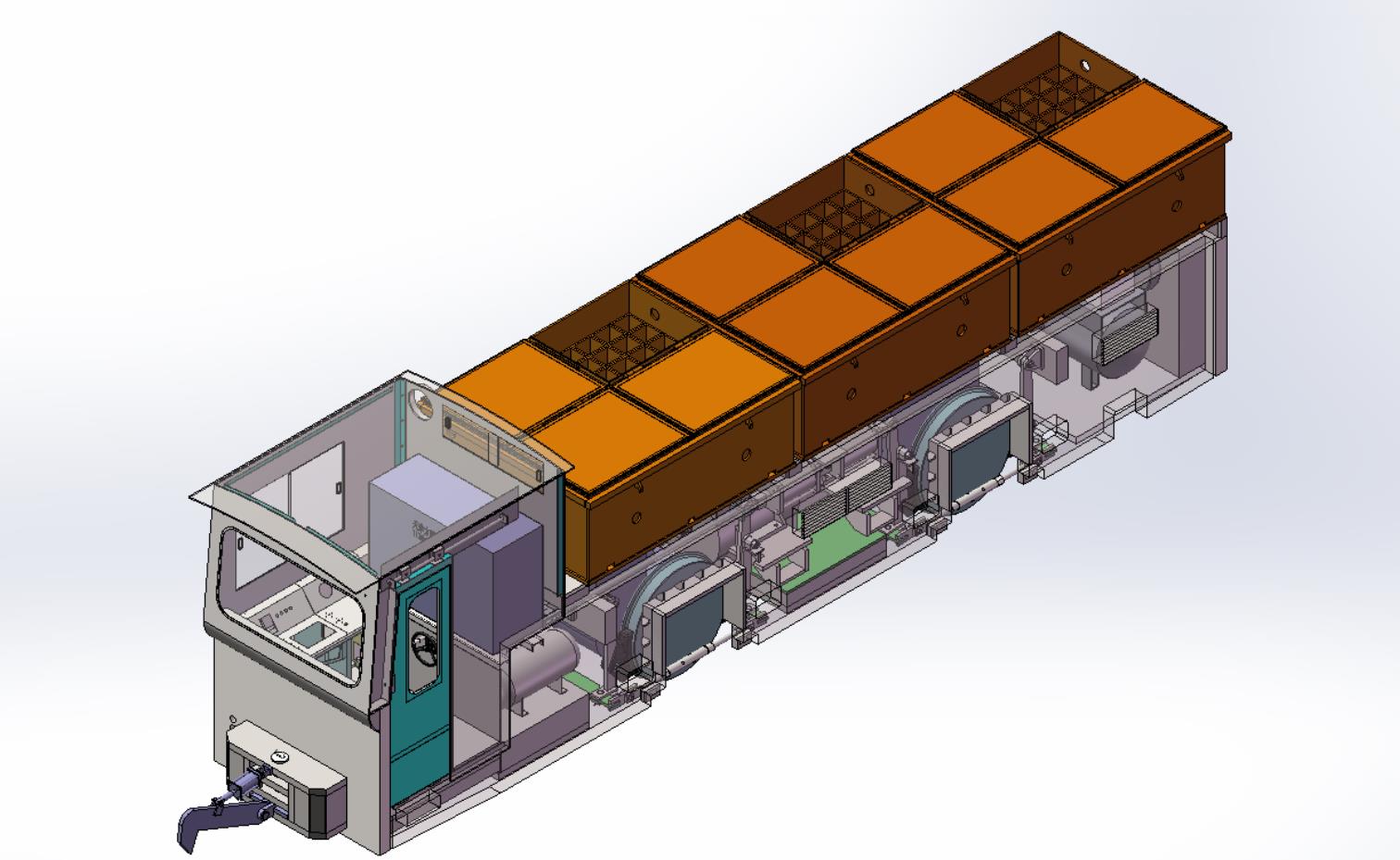

New energy locomotive 45T vehicle assembly
Product Specifications：
